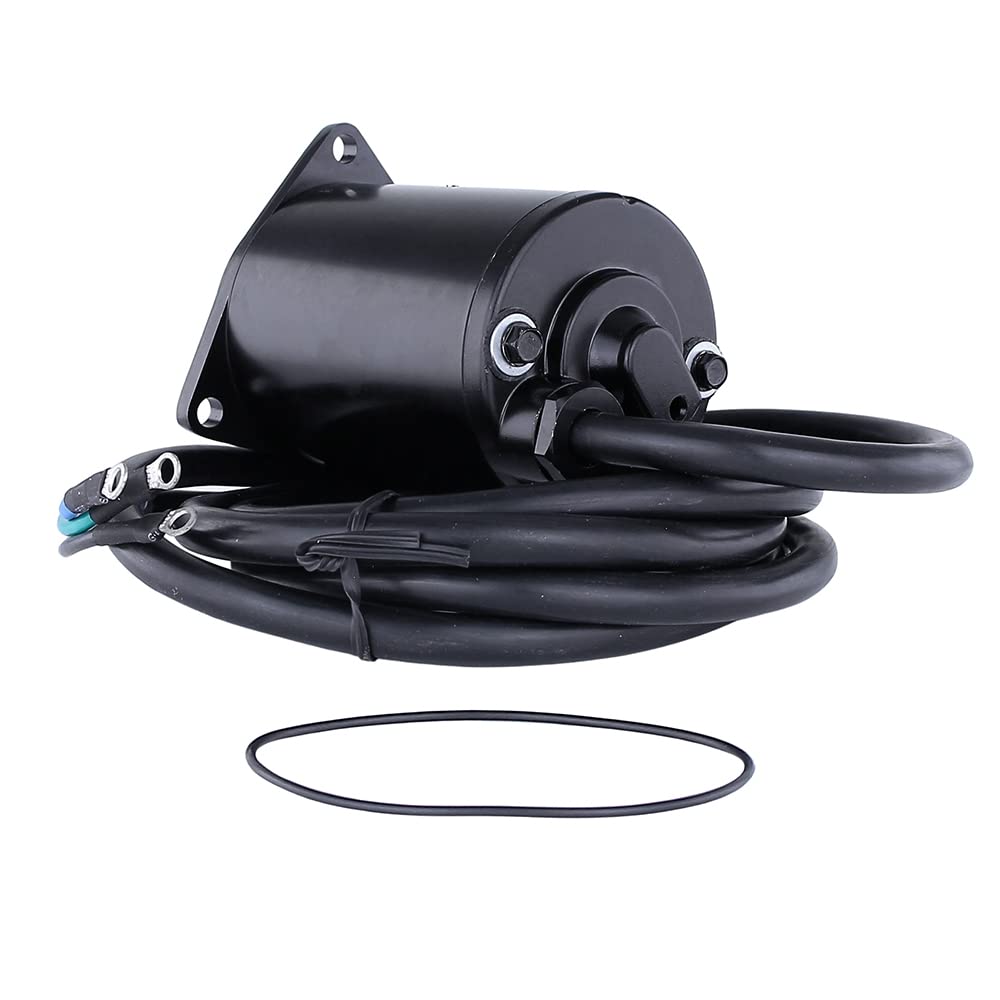

RAREELECTRICAL Tilt Trim Motor Compatible with 1980-1981 70-235Hp Outboard 12V Reversible Prestolite 40-476 40-478 40-496 Omc 391264
Product details
| Management number | 210724215 | Release Date | 2026/04/02 | List Price | $39.76 | Model Number | 210724215 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
OEM PART NUMBERS: OMC: 387277, 391264, 393259, 393988, 394176, 395840, 396313, 396316 OMC: 434795, 435548, 582048, 582155, 983019, 985237 Prestolite: 40-476, 40-478, 40-496, EVC4002, PMP4001, PMW4001, PMW4002, PMW4002A, PMW4002B Arco Marine: 6206 / Sierra: 18-6761 Johnson Electric: 4372840, 4372840MO25RM, RM43728 SPECIFICATIONS: Unit Type: Prestolite Voltage: 12V Rotation: Reversible Wire Count: 3-Wire Connection Shaft OD: 8mm (0.315") Shaft Type: 2.6mm Drive Tang Terminal 1/2: 6.2mm Blade Overall Length: 128.4mm (5.055") Field Housing OD: 65.4mm (2.575") Weight: 6 lbs Mounting: 3-Bolt Flange APPLICATIONS: Evinrude 70/75/85/100/115/140/150/175/200/235HP (1980) Evinrude 70/75/90/115/140/150/175/200/235HP (1981) Johnson 70/75/85/100/115/140/150/175/200/235HP (1980) Johnson 70/75/90/115/140/150/175/200/235HP (1981) ⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment. 12V Tilt Trim Motor - Evinrude Johnson 70-235HP 1980-1981 Direct OEM replacement Prestolite-type 12V reversible tilt trim motor for 1980-1981 Evinrude and Johnson outboard motors from 70HP to 235HP. Features 3-wire connection, 3-bolt mount, 8mm tanged shaft, and 6.2mm blade terminals. Replaces OMC 387277, 582048, 985237, Prestolite EVC4002, PMW4002, Arco 6206, Sierra 18-6761.
- Compatible with EVINRUDE, OMC, PRESTOLITE. Please verify your OEM part number from your original unit to help ensure fitment.
- Replaces: Oem Part Numbers: / Omc: 387277 / 391264 / 393259 / 393988 / 394176 / 395840 / 396313 / Omc: 396316 / 434795 / 435548 / 582048 / 582155 / 983019 / 985237 / Prestolite: 40-476 / 40-478 / 40-496 / Evc4002 / Pmp4001 / Prestolite: Pmw4001 / Pmw4002 / Pmw4002a / Pmw4002b / Arco Marine: 6206 / Sierra Marine: 18-6761 / Johnson Electric: 4372840 / 4372840Mo25rm / Rm43728 / Specifications: / Unit Type: Prestolite / Voltage: 12V / Rotation: Reversible / Wire
- Applications: Evinrude Outboards (1980): / E70elcsa 70Hp (1980) / E75ercsa/E75erlcsa/E75trlcsa 75Hp (1980) / E85mlcsa/E85stlcsa/E85stxcsa 85Hp (1980) / E100mlcsc/E100tlcsc/E100txcsc 100Hp (1980) / E115mlcsa/E115tlcsa/E115txcsa 115Hp (1980) / E140mlcsa/E140trlcsa/E140trxcsa 140Hp (1980) / E150trlcsf/E150trlcsr/E150trxcsf/E150trxcsr 150Hp (1980) / E175trlcsa/E175trlcsf/E175trxcsa/E175trxcsf 175Hp (1980) / E200trlcsf/E200trlcsm/E200trxcsf/E200trxcsm 200Hp (1980) /
- Applications: E235trlcsm/E235trxcsm 235Hp (1980) / / Evinrude Outboards (1981): / E70elcih/E70elcim/E70tlcim 70Hp (1981) / E75ercih/E75ercim/E75erlcih/E75erlcim/E75trlcih/E75trlcim 75Hp (1981) / E90mlcih/E90mlcim/E90tlcih/E90tlcim/E90txcih/E90txcim 90Hp (1981) / E115mlcih/E115mlcim/E115tlcih/E115tlcim/E115txcih/E115txcim 115Hp (1981) / E140mlcih/E140mlcim/E140trlcih/E140trlcim/E140trxcih/E140trxcim 140Hp (1981) / E150trlcia/E150trlcih/E150trxcia/E150trxcih 150Hp...
- Trim Motor - Voltage: 12V Rotation: Reversible Shaft Outside Diameter: 8 mm Shaft Specifications: 2.6 mm Drive Tang Source: Aftermarket
| Model | 10805*3 |
|---|---|
| Voltage | 12 |
| Brand Name | Rareelectrical |
| Model Name | Aftermarket Trim Motor |
| Item Weight | 6 Pounds |
| Manufacturer | RAREELECTRICAL |
| Included Components | Trim Motor |
| Warranty Description | Warranty 1 Year From Date of Purchase |
